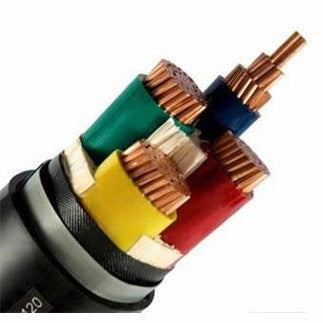

Low Voltage Power Cable up to 35kV for Power Transmission
Low Voltage Power Cable up to 35kV for Power Transmission
This low voltage power cable up to 35kV is designed for power transmission and distribution systems. It is widely used in industrial, infrastructure and energy projects, offering stable performance and reliable power delivery.
Main Features
1. The highest allowed operating temperature of conductor for long-term working is 90 degrees.
2. In short circuit (Max long term is no more than 5 seconds). The highest temperature for conductor is no more than 250 degrees.
3. The cable is laid without horizontal drop limit. The environment temperature should be no lower than 0 when lay. Otherwise it should be preheated.
Conductor: Plain Anealed Copper or Aluminum
Conductor Shape: Circular Stranded or Compacted Circular Stranded
Appearance Shape: Circular
Insulation: XLPE
Armoured Type: SWA(Steel Wire Armoured)
Sheath Material: PVC or Polyethylene
Standard
1,IEC, BS, VDE, AS/NZS, ICEA, JIS and so on.
2,Only the halogen free cables shall be generally produced complied with IEC61034 and 60754.
