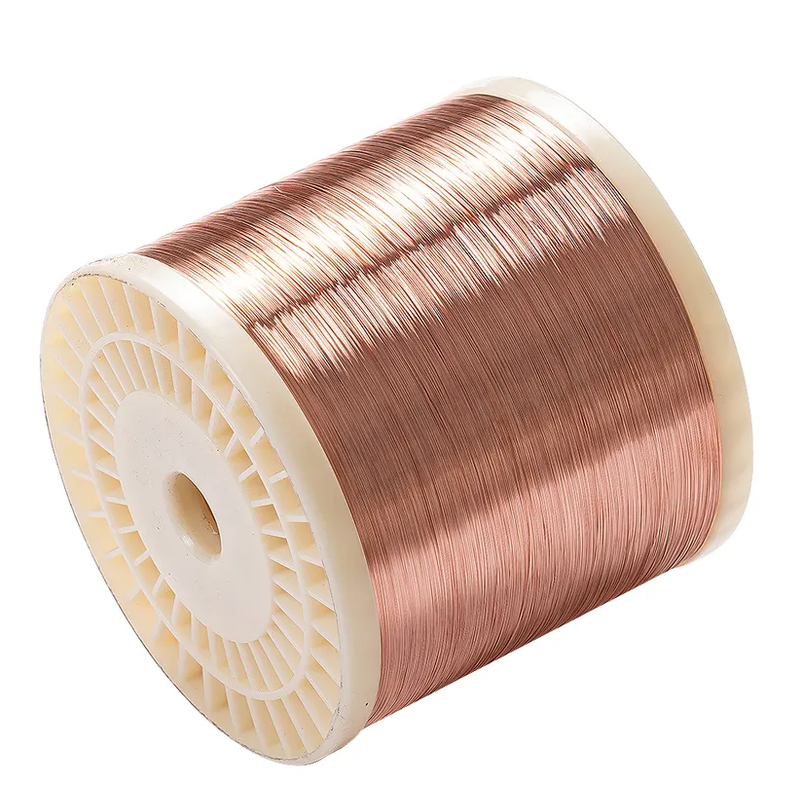

Raw Material Copper Clad Aluminum CCA
| Technical Characteristics | Clad type | Plated type | ||
| 15H | 15A | Hard (H) | Anneal (A) | |
| Size range (mm) | 0.12 – 8.00 | 0.12 – 8.00 | 0.12 – 8.00 | 0.12 – 8.00 |
| Copper content (%)
by weight |
36 – 40 | 36 – 40 | 6-15 | 6-15 |
| Conductivity (%)
at 20℃ |
55 | 55 | 35 – 43 | 35 – 43 |
| DC Resistivity (Ω.mm²/m) | 0.03085 | 0.03085 | 0.04718 | 0.04718 |
| Tensile strength (Mpa) | ≥ 220 | ≥ 160 | ≥ 250 | ≥ 180 |
| Elongation (%) | ≥ 1 | ≥ 8 | ≥ 1 | ≥ 8 |
| Density (g/cm³) | 3.63 | 3.63 | 2.85 | 2.85 |
